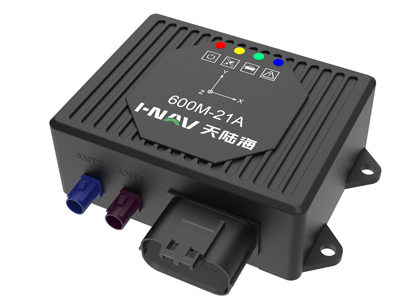

TLH-INS-600M-21A

MEMS Gyro Position and Orientation Navigation System
TLH-INS-A Vehicle-mounted Positioning and Directional Navigation System

TLH-INS-A Vehicle-mounted Positioning and Directional Navigation System is an inertial navigation device based on domestic high-precision optical fiber/MEMS gyroscope and quartz flexible accelerometer/MEMS accelerometer. It can realize integrated navigation function with odometer, magnetometer, Beidou receiver (can be built in) and altimeter, and can provide high-precision information such as position, speed, azimuth angle, horizontal attitude angle and angular rate for the carrier independently, in real time and continuously, which can meet the requirements of high-precision positioning, orientation and navigation for all kinds of land carriers. This product supports different working modes, such as "pure inertia", "inertia/mileage/magnetic combination" and "inertia/mileage/elevation/Beidou combination", which can be automatically switched according to the configuration of external equipment.
View Performance Parameters

  • Main Functions

    With the function of zero speed correction, it can compensate for the zero error of inertial devices online

  • Main Functions

    With the function of online calibration, the system has a long calibration-free period

  • Main Functions

    With mounting reference abutment, an orientation reference prism can be provided according to the user's requirements

  • Main Functions

    With time synchronization interface, it can synchronize time with other equipment

  • Main Functions

    The supporting Client Software has complete functions and can monitor the working state and performance of the system and inertial devices online

  • Main Functions

    Quick response with the functions of disturbance alignment and moving alignment

Advantages

Integrated design of the whole machine, compact structure, optional built-in Beidou receiver and altimeter

High circuit integration, integrated design of navigation solution, accelerometer IF conversion and other circuits

Inertial devices with high bandwidth, high sampling frequency and good dynamic error suppression effect

Rich interfaces and strong adaptability, with dual CAN, RS422, RS232, synchronous second impulse and other interfaces, which can be customized according to the user's needs

Software online upgrade, parameter automatic calibration function.

Performance Parameters

  • For more details, please contact us.
